Apple Face ID & Touch ID

Authenticate Instantly with iOS Biometrics

Fingerprint authentication has been available on iOS since the iPhone 5s (iOS 9.0). This plugin enables your app to use this secure and convenient method of user authentication via Touch ID or Face ID.

The Median Face ID / Touch ID plugin uses the Median JavaScript Bridge to securely store and retrieve user credentials. The plugin communicates between the web page and the native app by opening a specific URL with query parameters. Responses from the native app are returned via a callback function in the JavaScript context.

The plugin allows you to store a secret string, defined by the website developer. This could include a JSON object with a username and password, an authentication token, or any other data used for login.

How it works

  1. Check Biometric Availability
    First, check whether biometric authentication data is available and biometrics are supported for the device (older models or MDM configurations may disable the support). If no fingerprints or Face ID are set up, do not display the biometric login prompt.
  2. Save Login Secret
    After a user logs in and biometric authentication is available, the website can save a secret using the plugin. The secret is stored in the iOS Keychain, which uses cryptographic hardware to ensure it cannot be retrieved without biometric authentication. Saving the secret does not require user interaction.
  3. Retrieve Saved Secret
    On future visits, if a saved secret is available, the site can prompt the user to authenticate via fingerprint (Touch ID) or Face ID. If authentication succeeds, the secret is returned via the JavaScript callback. If it fails, an error is returned.
  4. Use Secret to Log In
    Once the secret is recovered, you can either use it to directly login the user or populate the login form on you web app.

👍

Developer Demo

Display our demo page in your app with the Face ID / Touch ID Native Plugin active to test during development https://median.dev/auth/

Implementation Guide

This guide assumes a working publicly-accessible website (or test site) with a username and password login system.

Save secret on successful login

After a user successfully logs in to your website with their username and password, check to see if Touch ID is available. If it is, save a secret for future retrieval. The secret must be a single string and can be a combination of the username and password, or an authentication token.

↔️Median JavaScript Bridge

For example, you may embed this JavaScript into your post-login page:

var username = 'andy'
var password = 'password';

median.auth.status({'callbackFunction': median_status_afterlogin});

function median_status_afterlogin(data) {
    if (data && data.hasTouchId) {
    	var secret = JSON.stringify({
            username: username,
            password: password
        });

        median.auth.save({'secret': secret});
    }
}

// Promise method
median.auth.status().then(function (result) {
    if (result && result.hasTouchId) {
    	var secret = JSON.stringify({
            username: username,
            password: password
        });

        median.auth.save({'secret': secret});
    }
}

Learn more about using promises and the Median JavaScript Bridge.

In this example, we have saved the username and password as the secret. You may choose to save an authentication token instead.

Check for secret on login page

↔️Median JavaScript Bridge

On the login page, you will need to know whether or not to prompt for TouchID credentials. Start by getting the status:

median.auth.status({'callbackFunction': median_status_beforelogin});

function median_status_beforelogin(data) {
   if (data && data.hasTouchId && data.hasSecret) {
       // Prompt the user to use the fingerprint to log in
       median.auth.get({'callbackFunction': median_secret_callback});
   }
}

function median_secret_callback(data) {
    if (data && data.success && data.secret) {
        var credentials = JSON.parse(data.secret);
        var username = credentials.username;
        var password = credentials.password;

        // Use username and password to do login here,
        // e.g. an http post or ajax request
    } else {
       // Fall back to manual login
    }
}

// Promise method
median.auth.status().then(function (result) {
   if (result && result.hasTouchId && result.hasSecret) {
       // Prompt the user to use the fingerprint to log in
       median.auth.get({'callbackFunction': median_secret_callback});
   }
}

Once the median_secret_callback function is called with the previously saved secret, it should perform a request to log in the user. If the credentials are incorrect, you should delete the secret and allow manual login by running the function:

// delete secret if credentials are incorrect
median.auth.delete({'callbackFunction': CALLBACK});

Median JavaScript Bridge Reference

Retrieving FaceID / Touch ID availability

↔️Median JavaScript Bridge

Run the JavaScript function:

median.auth.status({'callbackFunction': CALLBACK});

Callback is required. The app will execute CALLBACK with an object parameter containing the fields:

  • hasTouchId: true or false. Indicates if the device is running iOS 9+ and there are fingerprints enrolled, or FaceID is enabled.
  • biometryType: ‘touchId’, ‘faceId’, or ‘none’. This field is populated on iOS only to differentiate between TouchID and FaceID.
  • hasSecret: true or false

Saving a Secret

Typically you will want to first check that Face ID / Touch ID is available via the status function above and then save the secret.

↔️Median JavaScript Bridge

Run the JavaScript function:

median.auth.save({'secret': secret});

callbackFunction is optional and will be called after the save operation with a success parameter.

Retrieving a Secret

↔️Median JavaScript Bridge

Run the JavaScript function:

median.auth.get({'callbackFunction': CALLBACK, 'prompt': 'PROMPT'});

Callback is required. Prompt is optional, and provides a message that can be displayed when iOS requests the user touch the fingerprint sensor. The app will execute CALLBACK with an object parameter containing the fields:

  • success: true or false
  • error: provided success is false (see error codes below)
  • secret: the previously stored secret
    Another optional query parameter is callbackOnCancel. If set to 1 and the user cancels the authentication, the callback will be run with success=false, error=userCanceled. If callbackOnCancel is not set (or set to 0), the callback will not be run.

Delete a Secret

↔️Median JavaScript Bridge

Run the JavaScript function:

median.auth.delete({'callbackFunction': CALLBACK});

Callback is optional. The app will execute CALLBACK with an object parameter containing the fields:

  • success: true or false
  • error: provided if success is false

Possible error values

In general, you will only need to handle authenticationFailed in the "get secret" request.

  • duplicateItem: Secret already exists
  • itemNotFound: No secret saved
  • authenticationFailed: Biometric check failed
  • genericError: Unexpected failure
  • userCanceled: User canceled the auth prompt
  • unimplemented: Plugin not supported

Testing Face ID / Touch ID Integration

We recommend testing on physical devices to confirm the flow is working as expected for devices with Face ID / Touch ID support, as well as older models or more restricted device configurations.

Additionally, you can also test the integration using the Appetize Simulators.

  1. Open the demo page in the simulator
  2. Click the Face ID Button (as shown below) to enable biometrics support in the simulator
  3. Log in with credentials
  4. Return to the demo page and use the Login with Face ID or Login with Touch ID button without having to provide username and password again

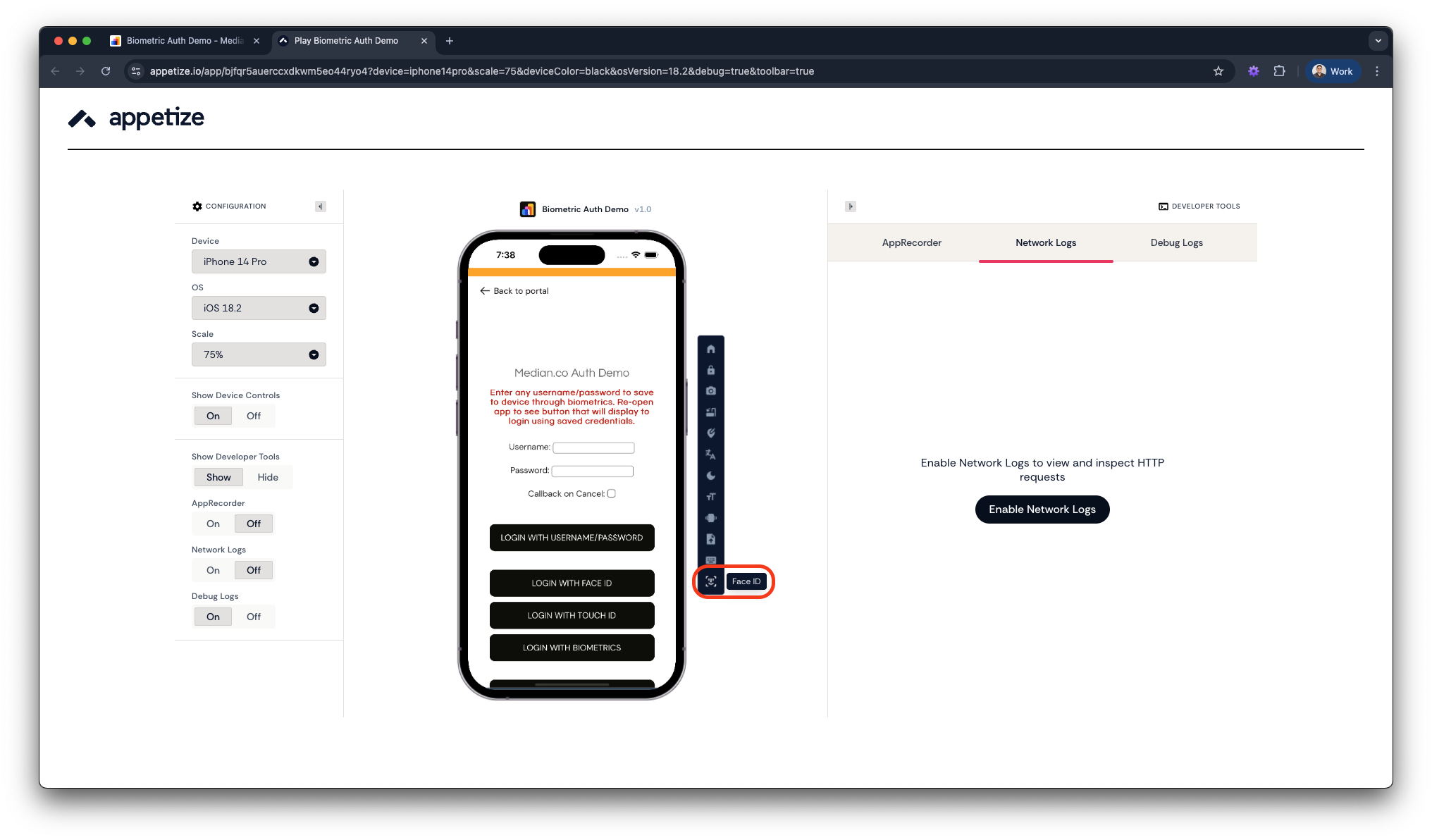

Appetize - Face ID Button

Appetize - Face ID Button

Whitelist Domains for Plugin Access

By default, any page loaded in your app will be able to use Median JavaScript Bridge to retrieve secrets. If you are allowing any domains you do not control to be loaded within your app (see Link Handling), we strongly recommend whitelisting only certain domains.

To do so, go to the Native Plugins tab in the Median App Studio, click Settings for the Face ID/TouchID Android Biometrics plugin and add your whitelisted URLs as shown below.

Regular expressions are supported to allow wildcards in the URL.

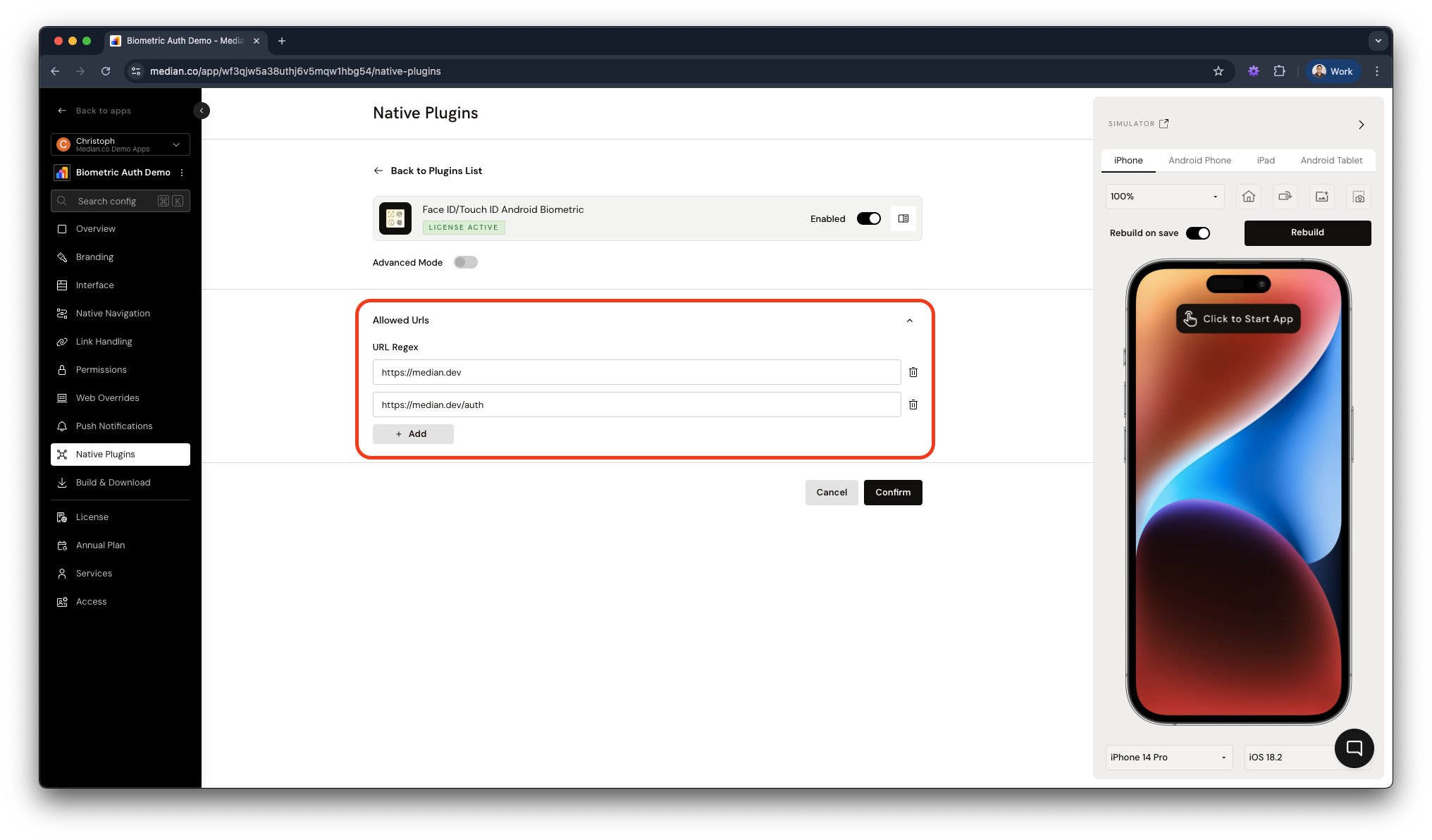

Whitelisting URLs for Access

Whitelisting URLs for Access
